Description

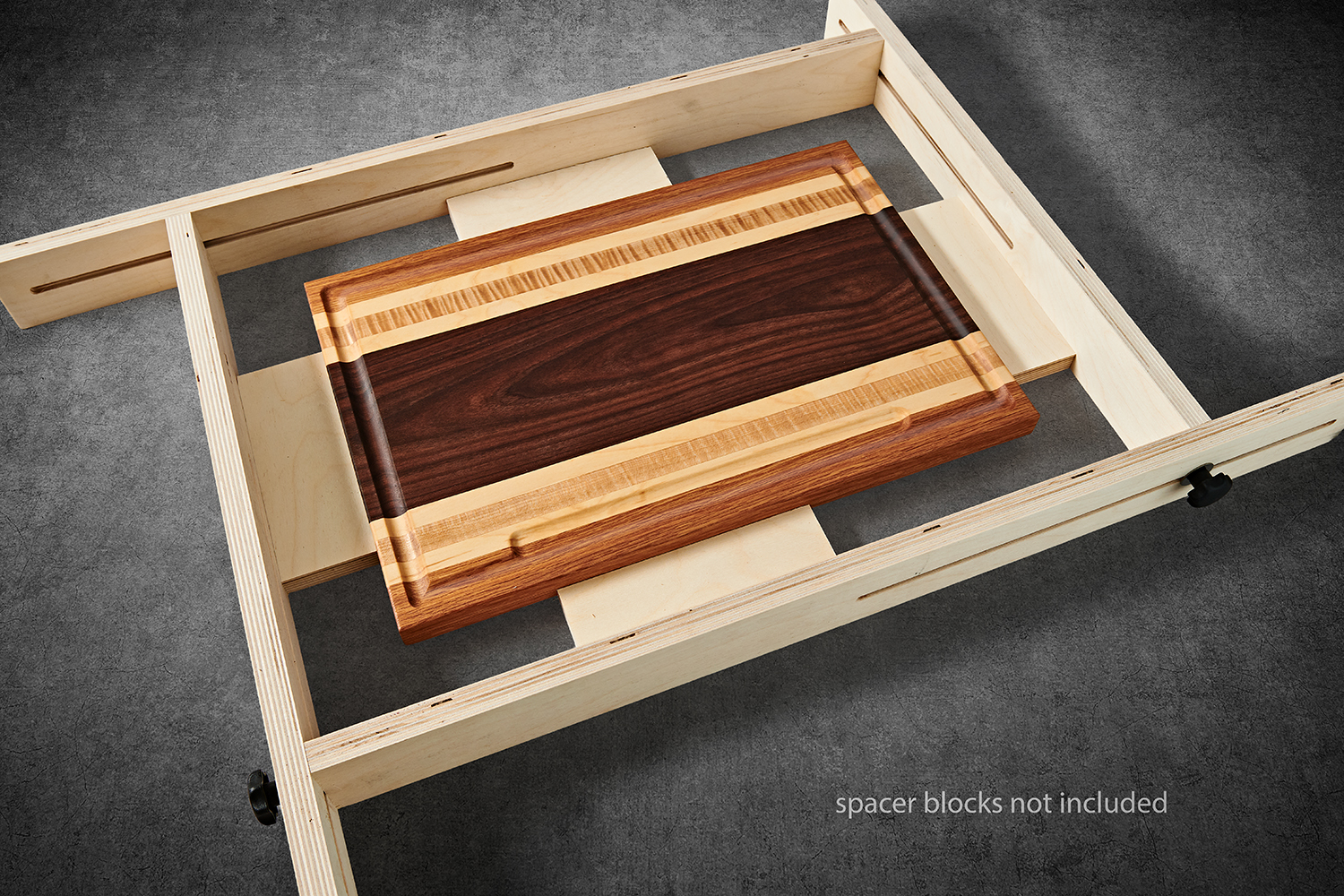

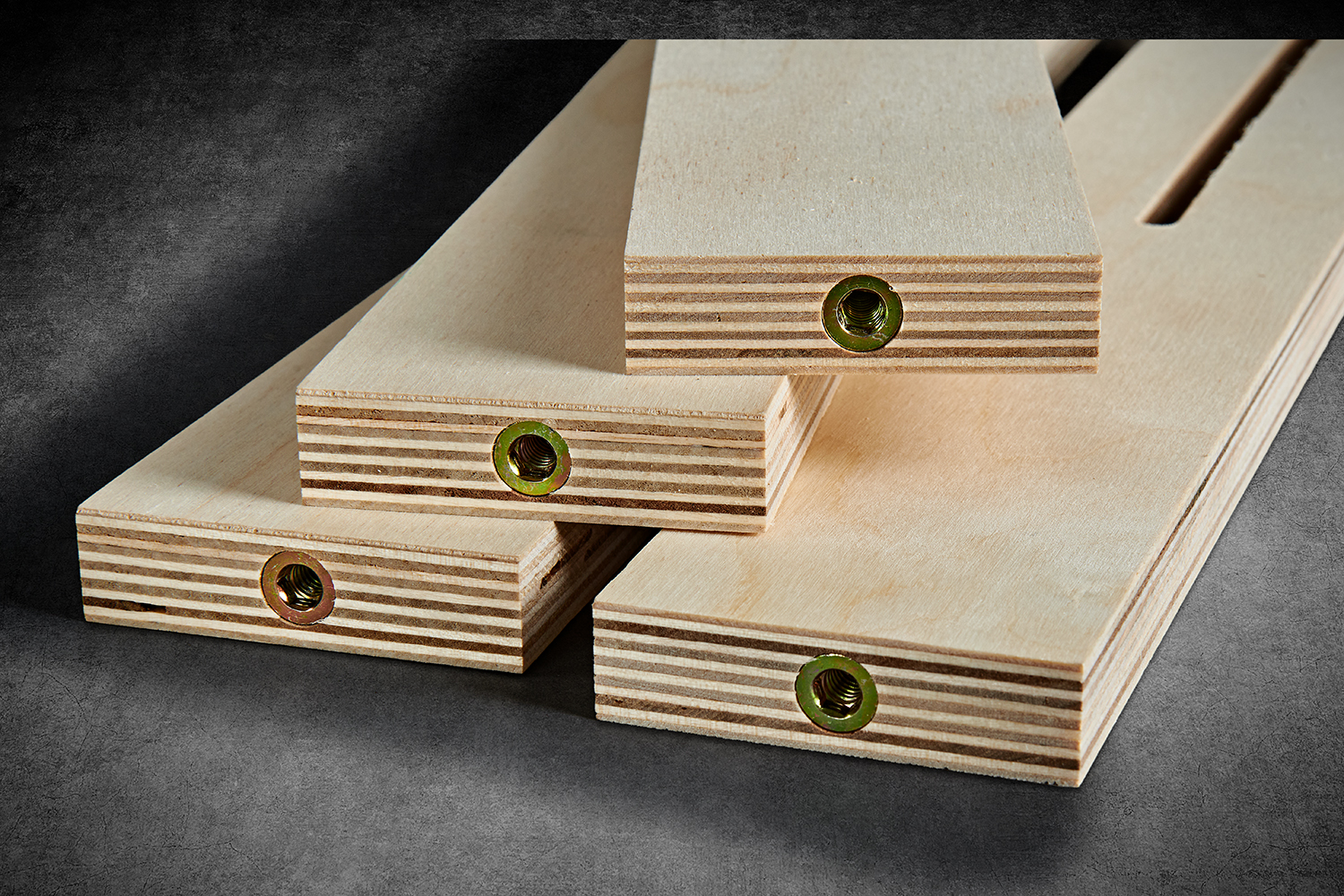

This jig makes it easy to create juice grooves in cutting boards. At it’s core, it is an adjustable 4-sided box with machined channels, threaded inserts and knobs, for quick and easy adjustment. Built using 3/4” Baltic Birch makes it sturdy and durable. Minimum interior size is 12-7/8” x 8”. Maximum interior size is 24.75” x 17.25”. These dimensions assume a 6” diameter router plate on a trim router using 2-1/4” spacer blocks. Trim router, router plate and spacer blocks not included. Depth is 2-3/4”, allowing for cutting boards up to 2-1/2” thick.
Specs

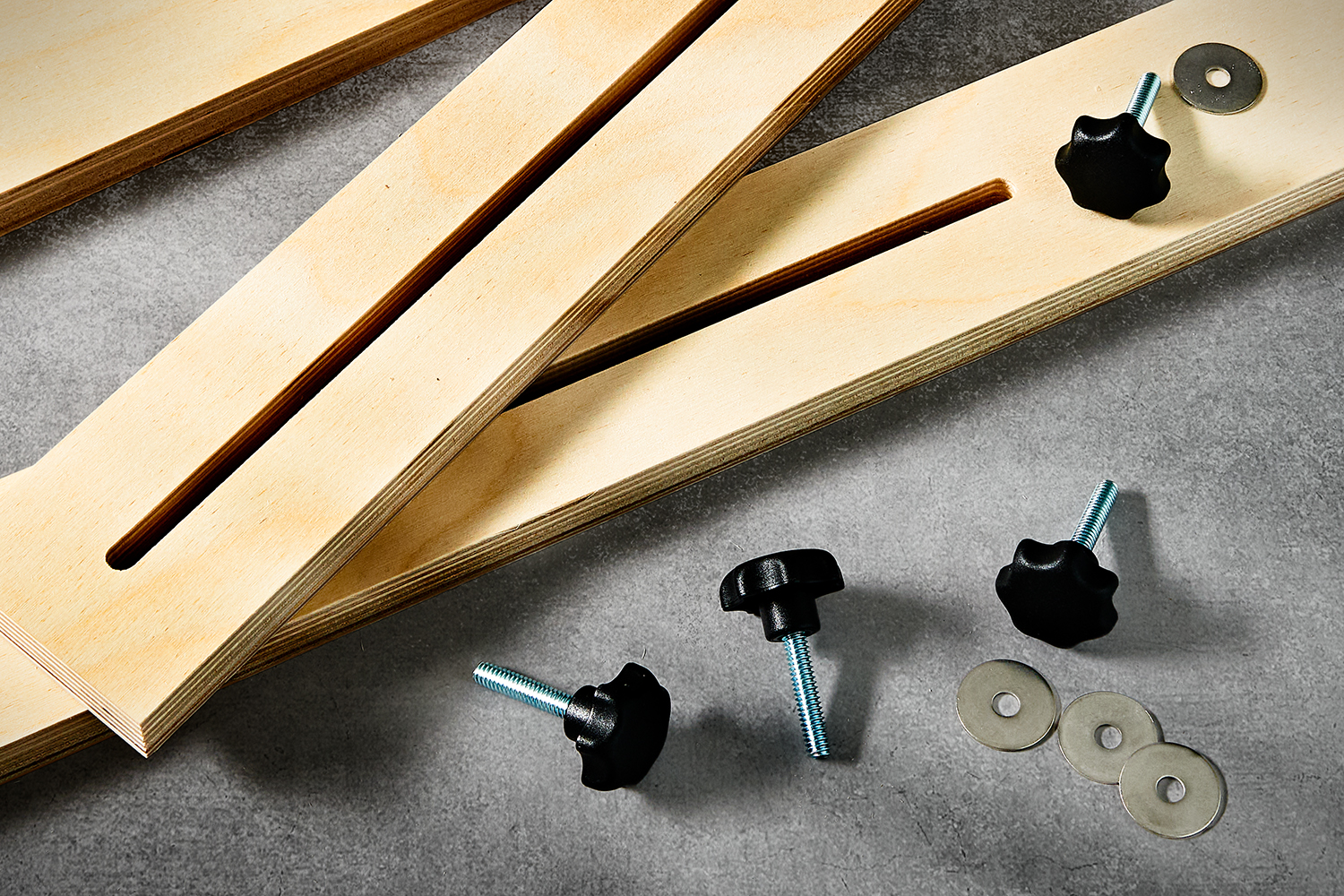

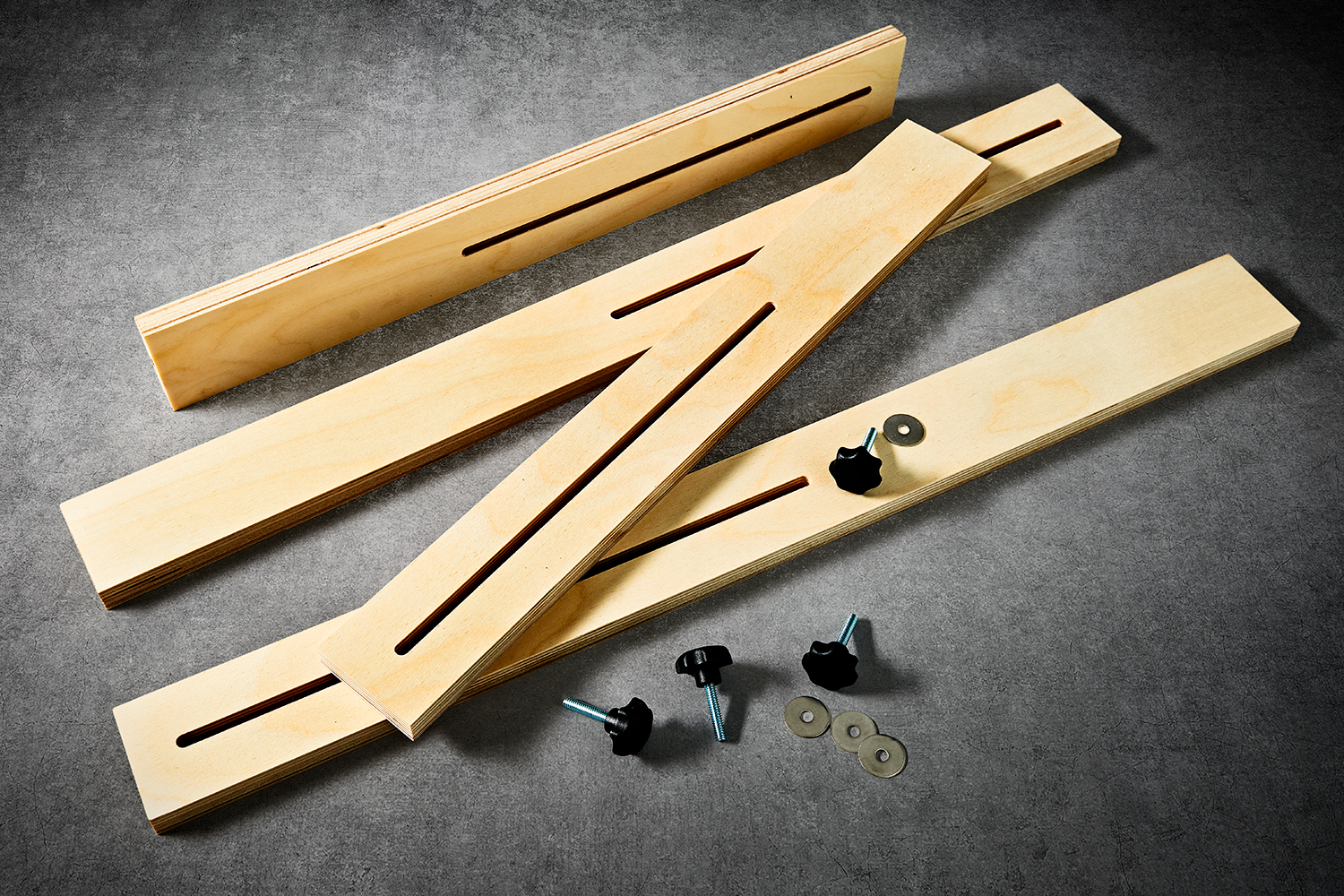

| Includes | (2) 22” x 2-3/4” x 3/4" BB with 5/16” x 12” slot milled and inserts installed.
(2) 29-3/4” x 2-3/4” x 3/4" BB with 5/16” x 12” slot milled and insert installed. (4) 1/4"-20 threaded knobs. (4) 1/4” x 1” stainless steel washers. |
| Maximum Dimensions | Maximum opening (w/o spacer blocks) is 27-1/2” x 19-3/4” at a depth of 2-3/4”. Maximum opening with 2-1/4” spacer blocks is 24.75” x 17.25”. |
| Minimum Dimensions | Minimum opening (w/o spacer blocks) is 12-7/8” x 8”. Minimum opening with 2-1/4” spacer blocks is 8-3/8” x 3-1.2”. |
| Shipping Weight | 5.4 lbs |

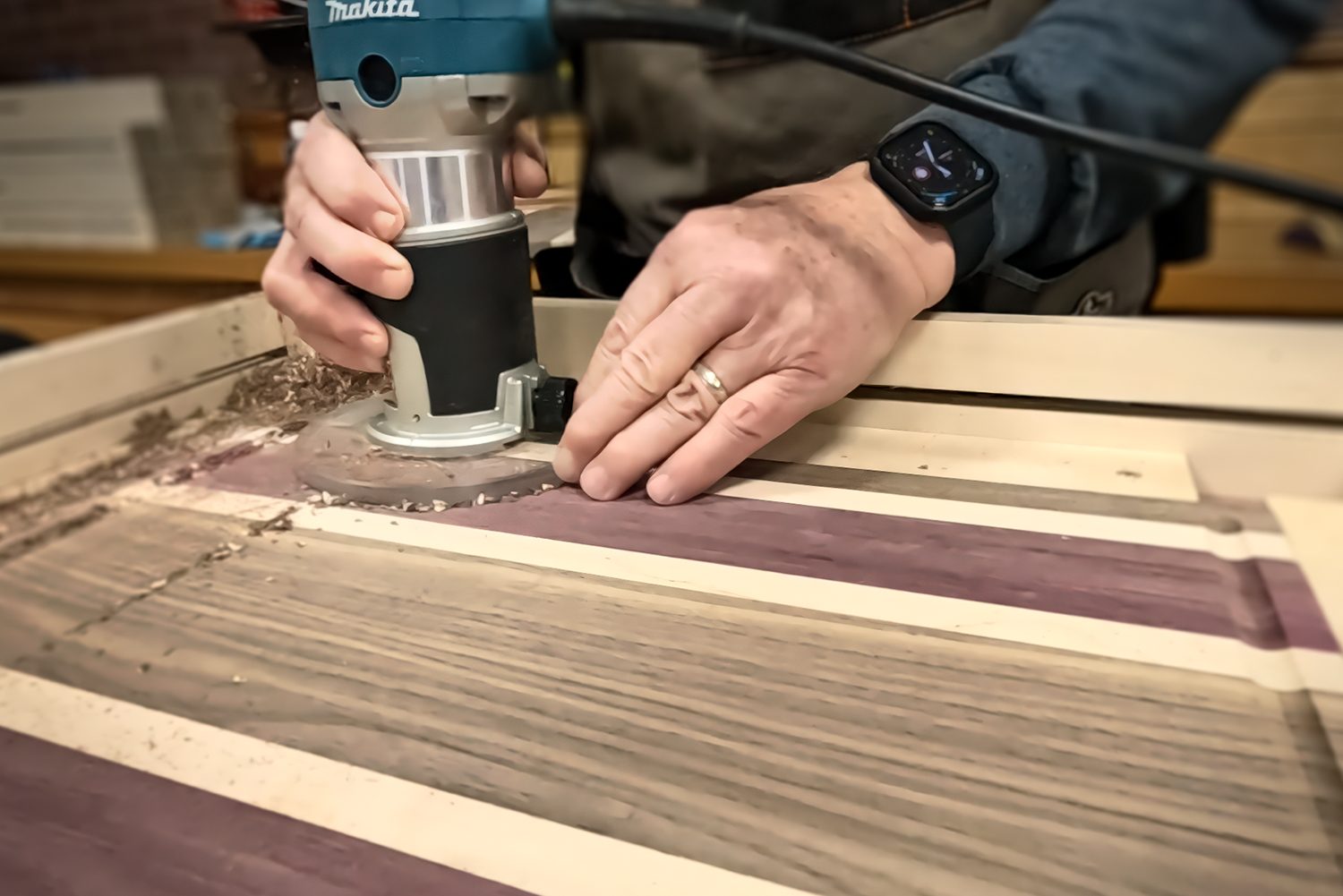

| To Use | 1) Assemble jig, leaving knobs untightened.
2) Lay your workpiece in jig. 3) Spacer blocks go between the workpiece and the inner walls of jig. 4) Adjust the jig for a snug fit to the spacer blocks/workpiece and tighten knobs. 5) Secure the jig to your workbench. 6) Install the router bit of your choice to the desired depth. For depths beyond 3/16” deep, do multiple passes. 7) Move the router in the appropriate (*clockwise) direction. The base should ride against the interior wall of the jig, using normal pressure to avoid any bowing or bending. 8) After completing the first pass, lower bit if needed for additional depth. It can be good practice to take a final shallow “skimcut” to remove any burn marks and to provide a smooth finish.
|
