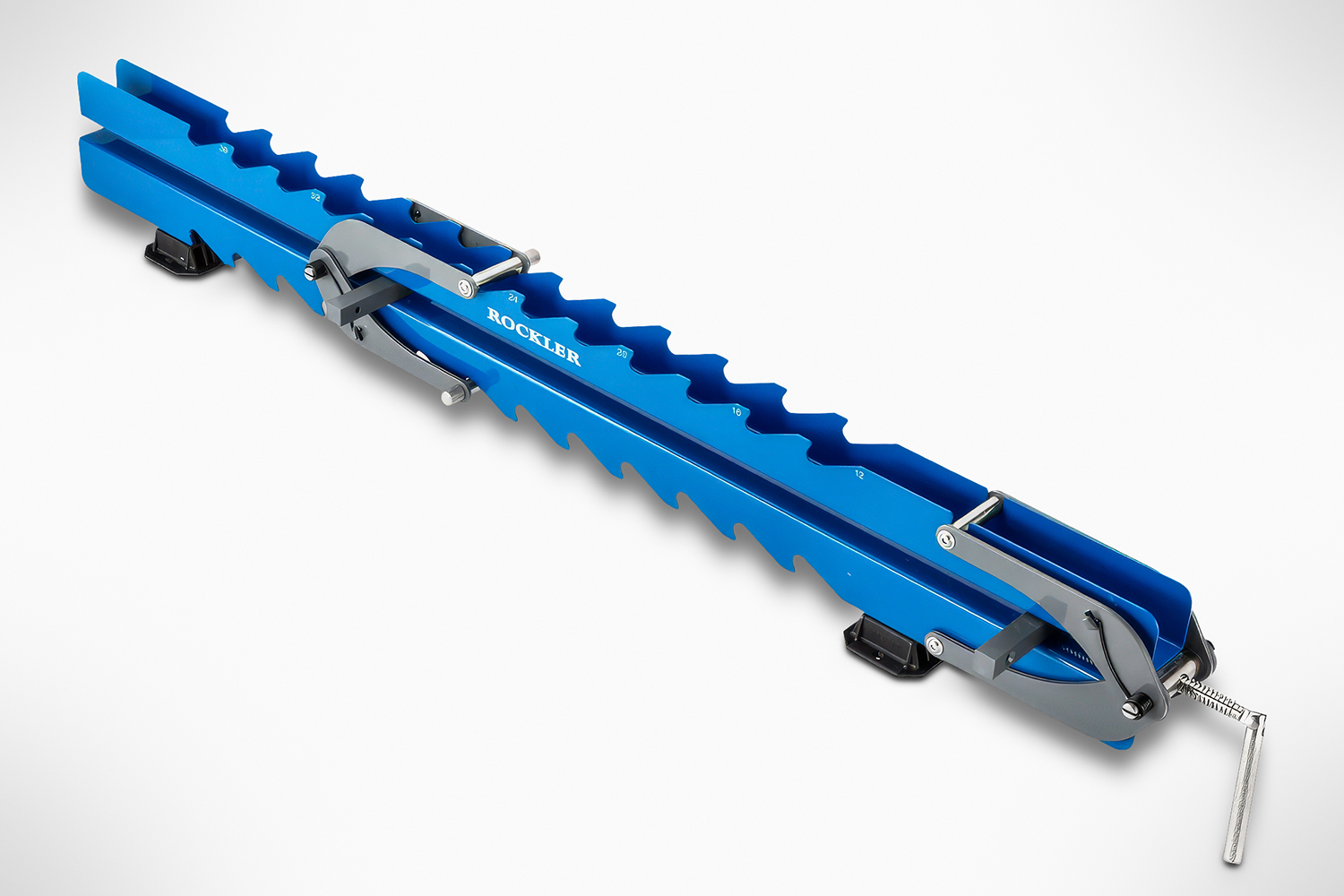

Rockler Deluxe Panel Clamp-Single

SKU #222079
MFR # 67164

Flat panels and flush joints are easy to achieve with our Deluxe Panel Clamps to keep things in line. Each clamp sandwiches your panel between two rigid steel cauls, forcing the joints flush and ensuring flat results. This saves you loads of sanding time, and ensures a nice, level surface without dips and high spots. Thoughtfully engineered from thick steel ...

See Full Description and Specs

$134.99

Out of stock

Product Highlights

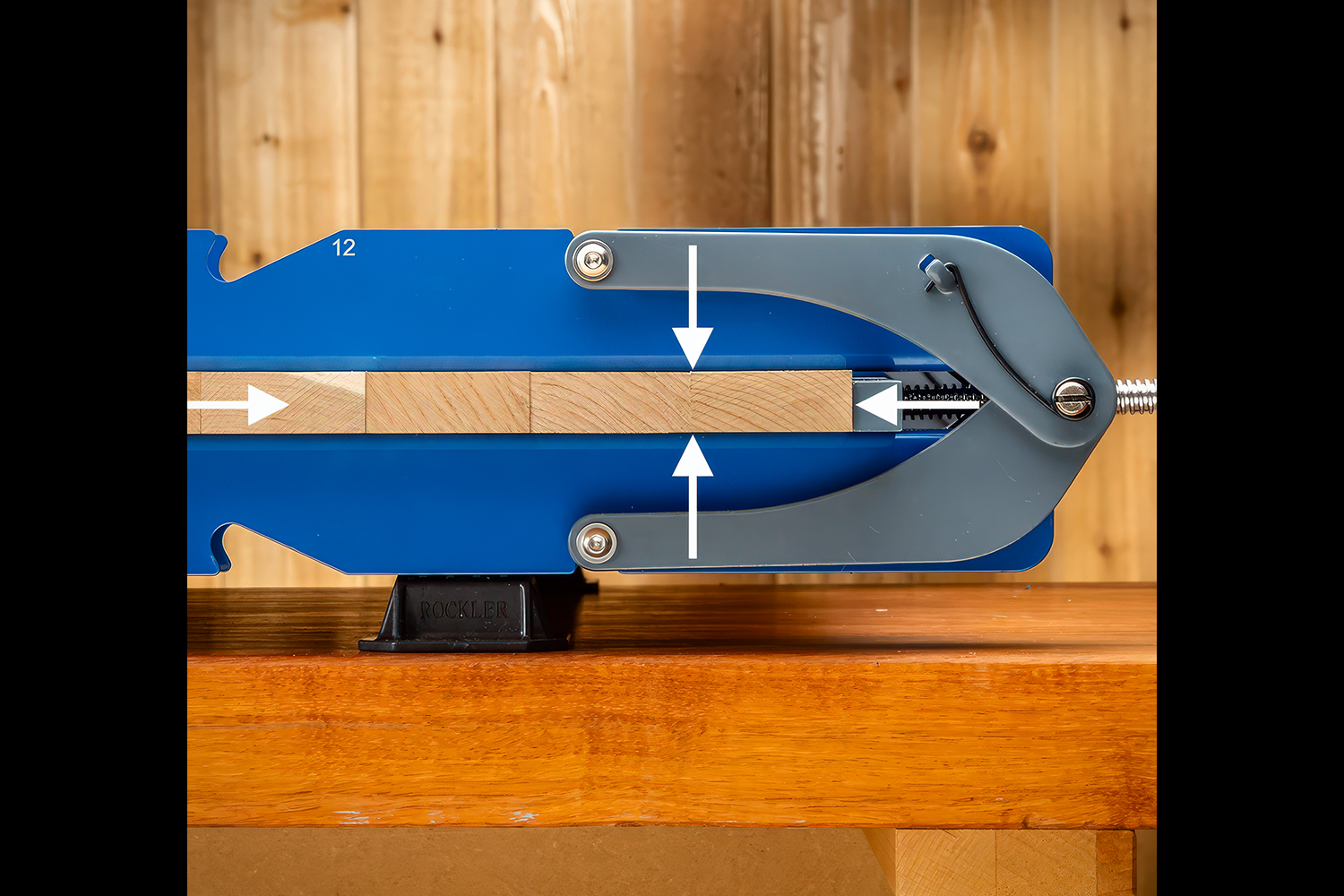

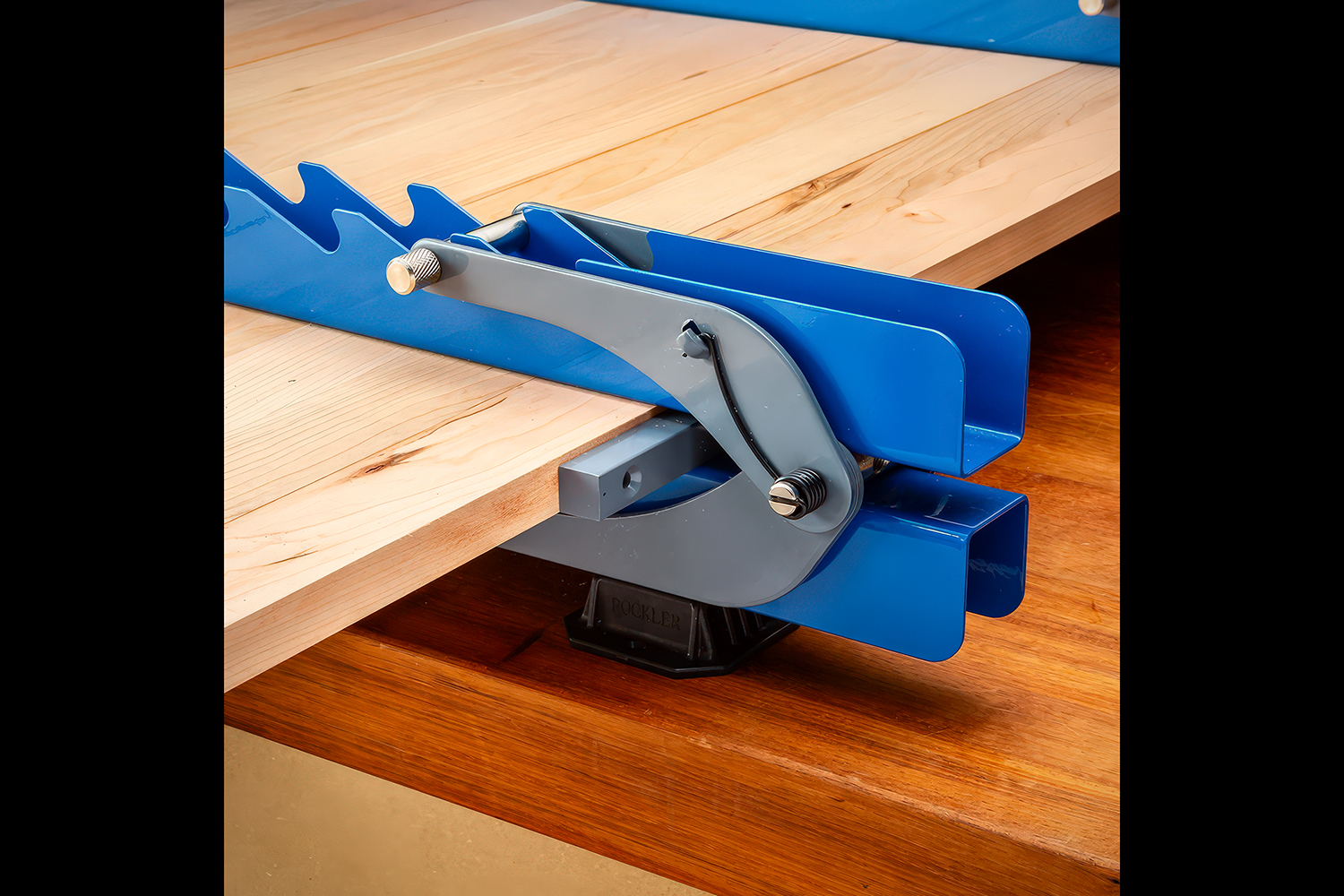

  • Four-Way Pressure.  Provides four-way pressure that both squeezes the glue joints together and holds the boards flat while the glue cures.
  • Equal Pressure. Equal pressure on all sides eliminates the tendency for the panel to bow upward under pressure.

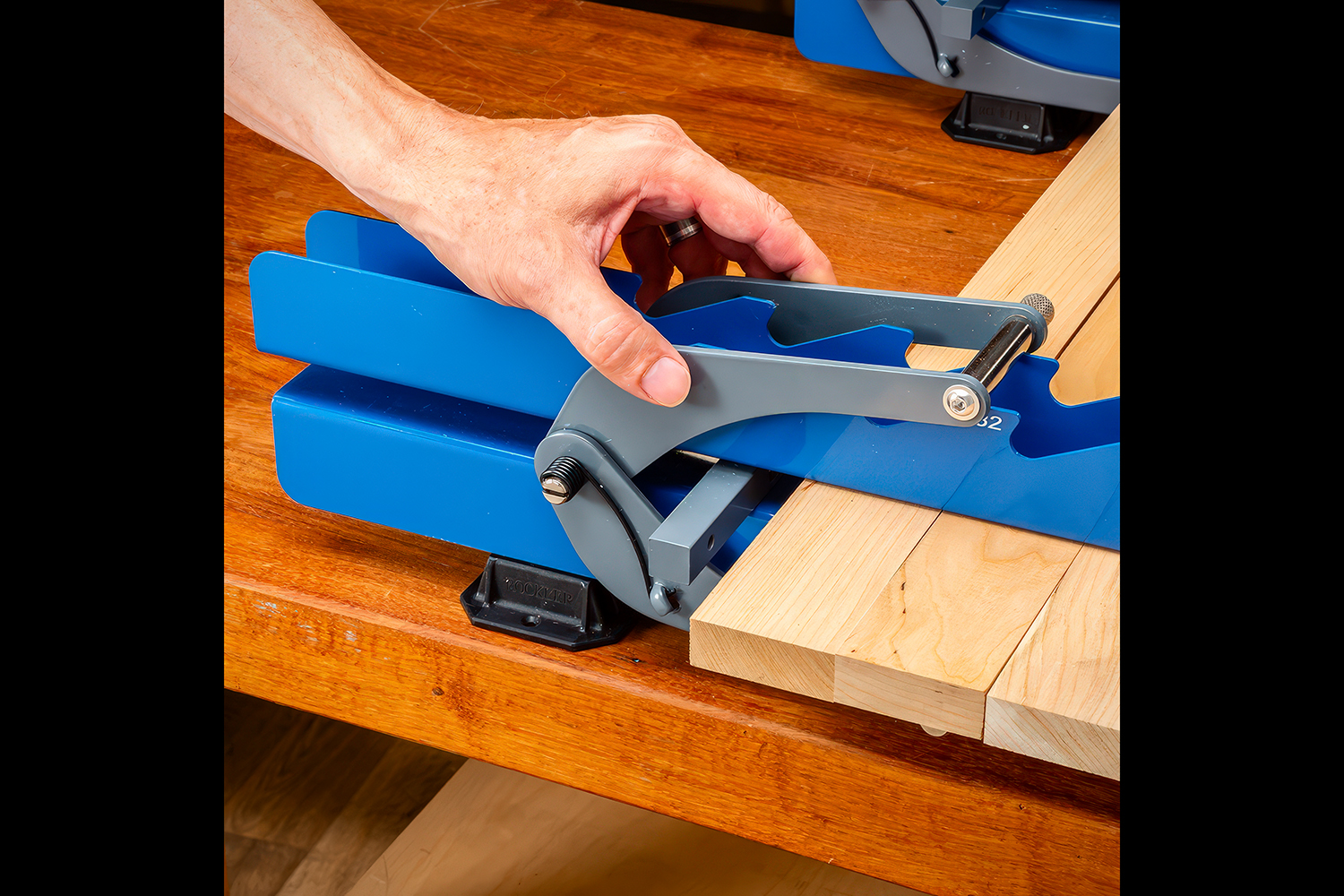

  • Sawtooth Rails. Sawtooth rails make it easy to adjust the clamp—just position the tailstock to fit your project.
  • Panel Width Marks. Panel width marks are printed on rails for faster setup.
  • Steel Rails. Steel rails are 1.8mm thick, with a durable powder-coat finish. Headstock and tailstock assemblies are also powder-coated.

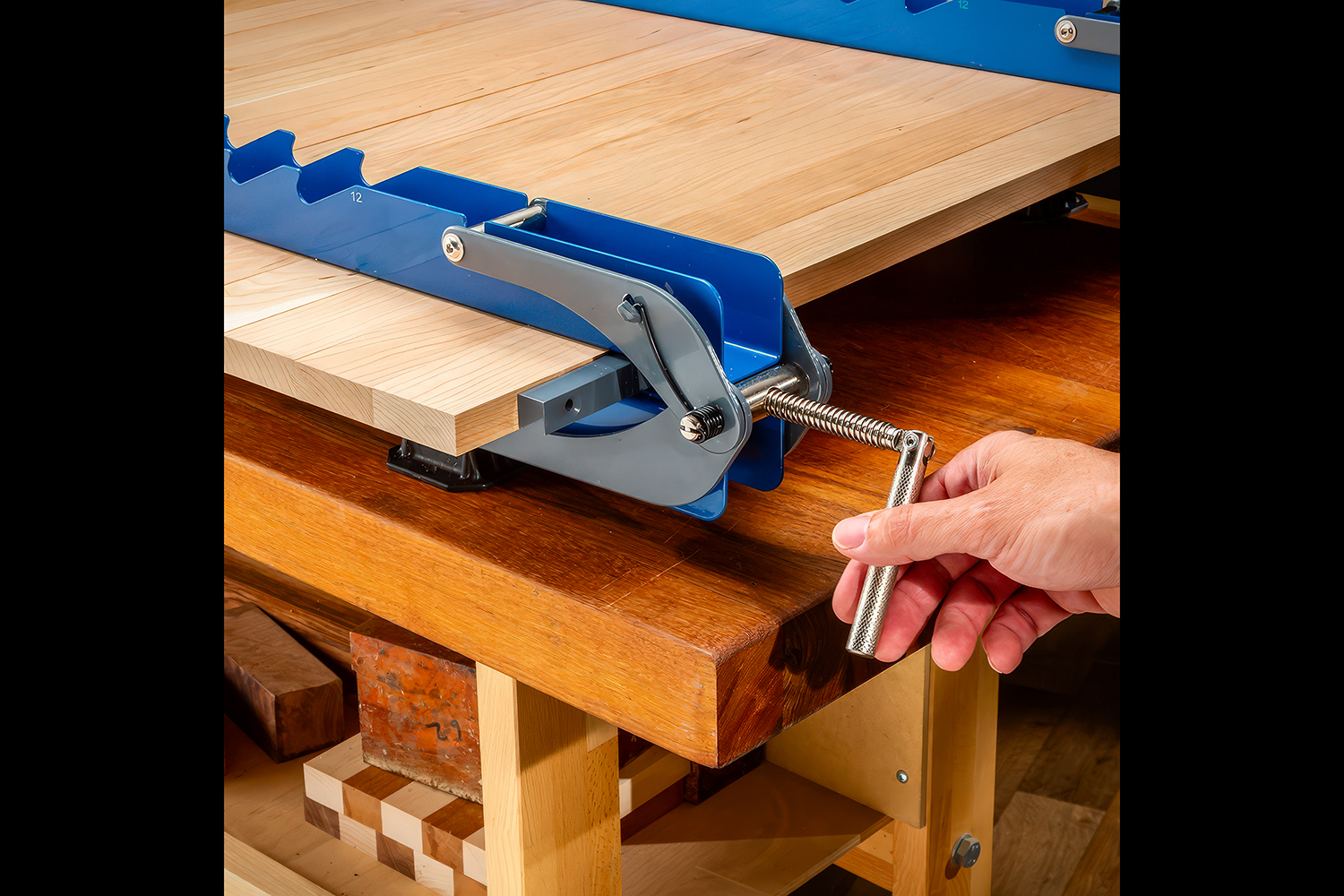

  • Zinc-Coated Rod. Acme-threaded rod and handle are zinc-coated.
  • Min/Max Dimensions. Works on panels from 3/4'' to 3'' thick and 10'' to 36'' wide.

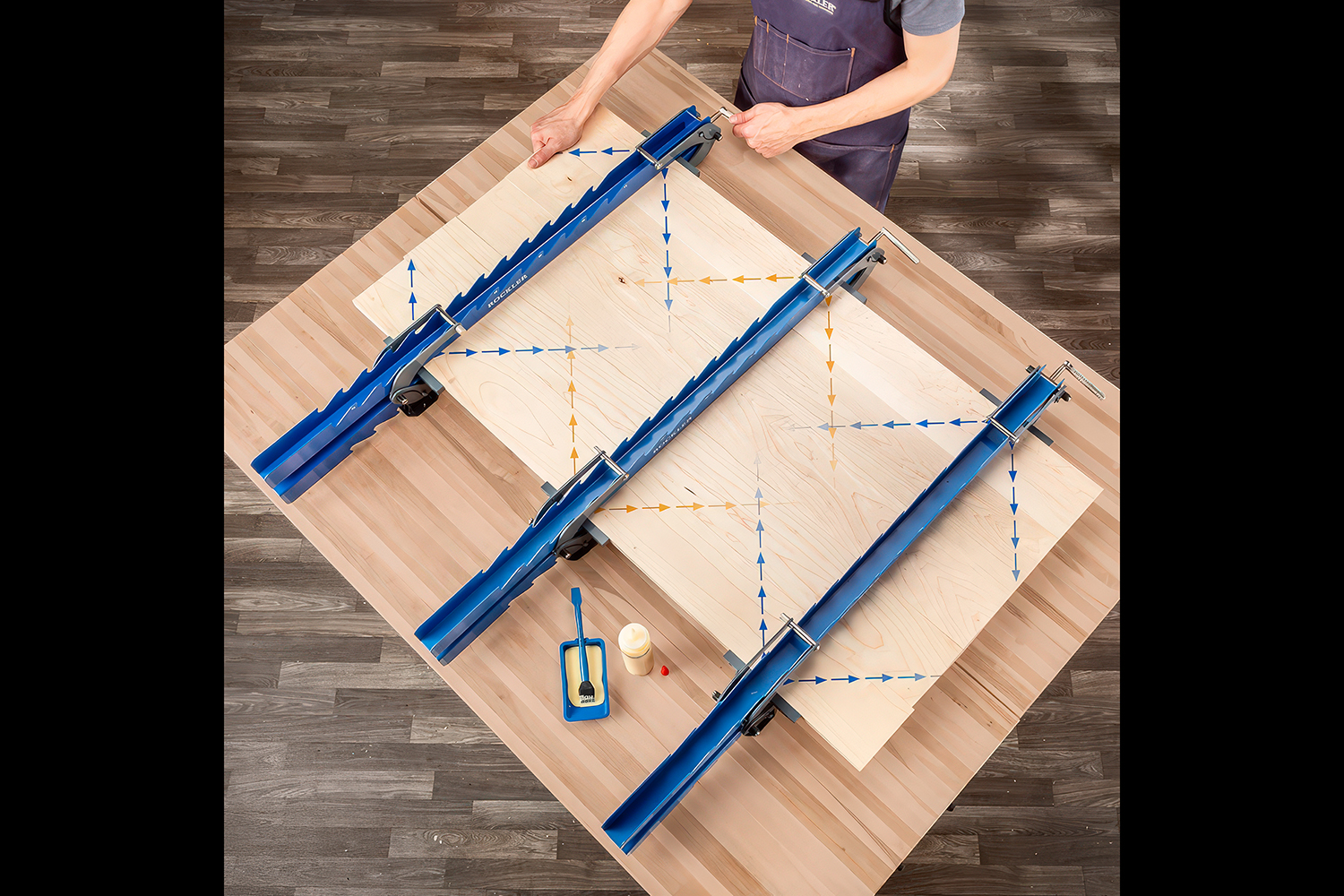

  • *Note. Two clamps are generally the minimum number needed, and the required number of clamps goes up with the size of your panel. A good guideline is that imaginary 45° lines extending from each clamp face should overlap the 45° lines extending from the neighboring clamp face at least somewhat.

Description

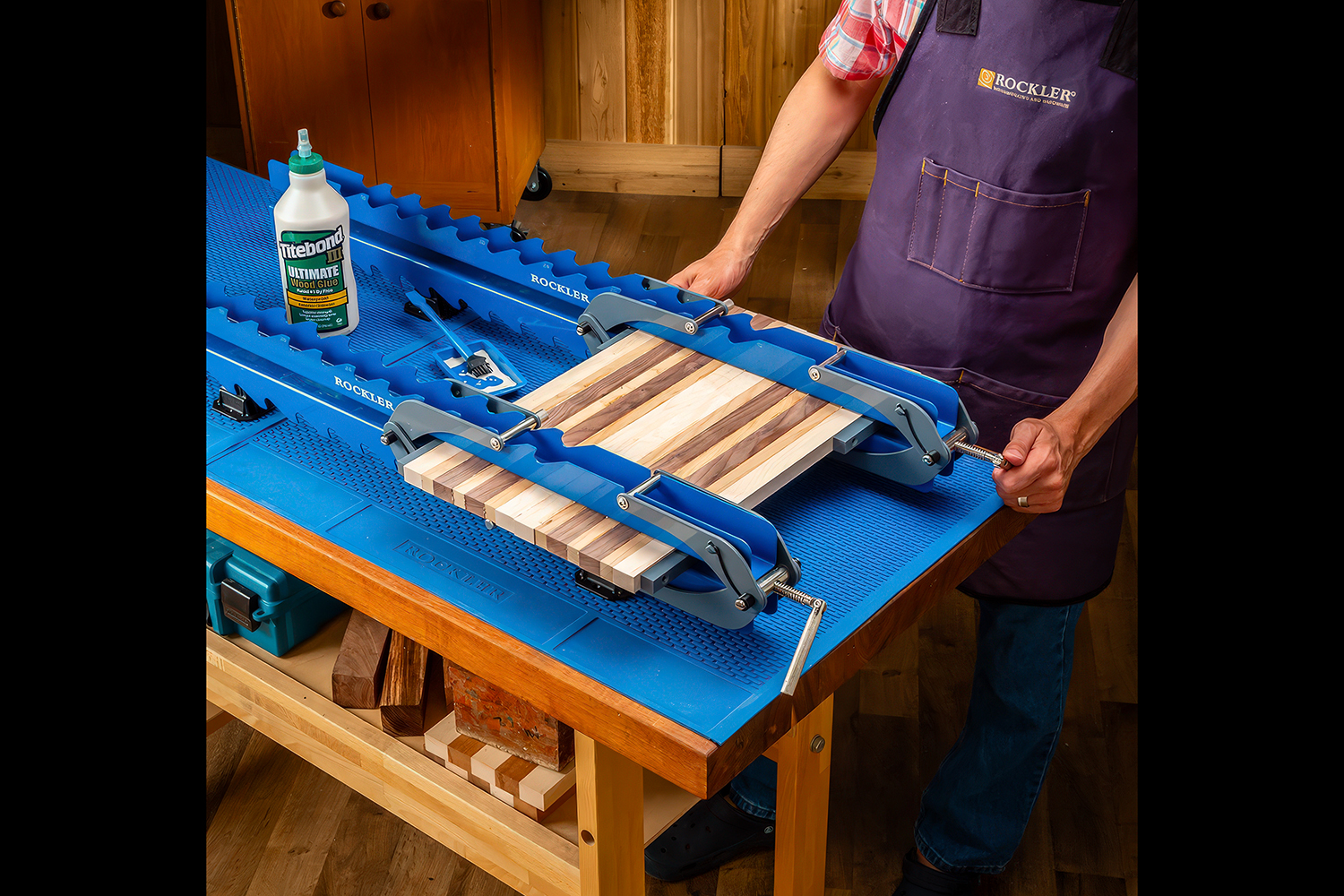

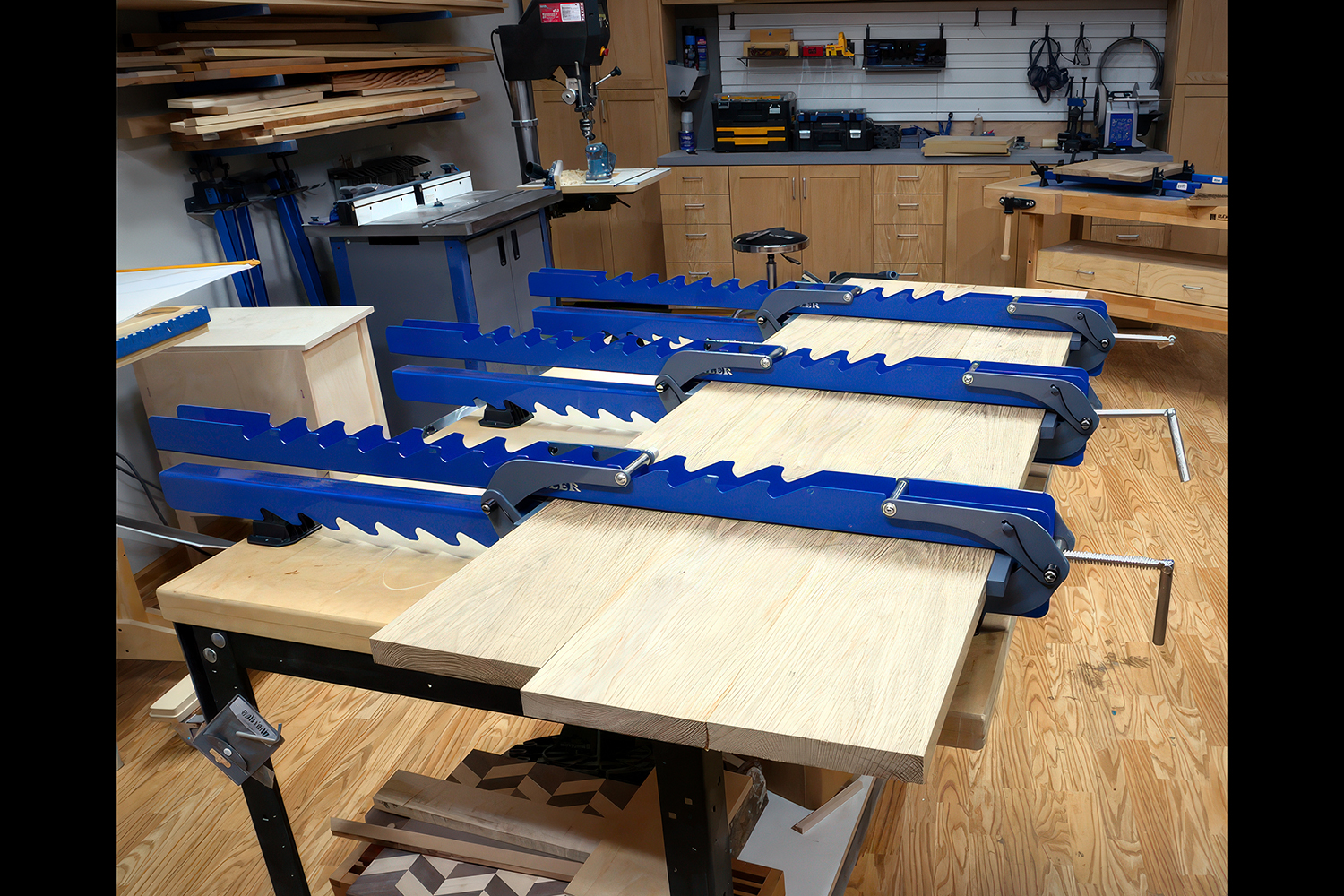

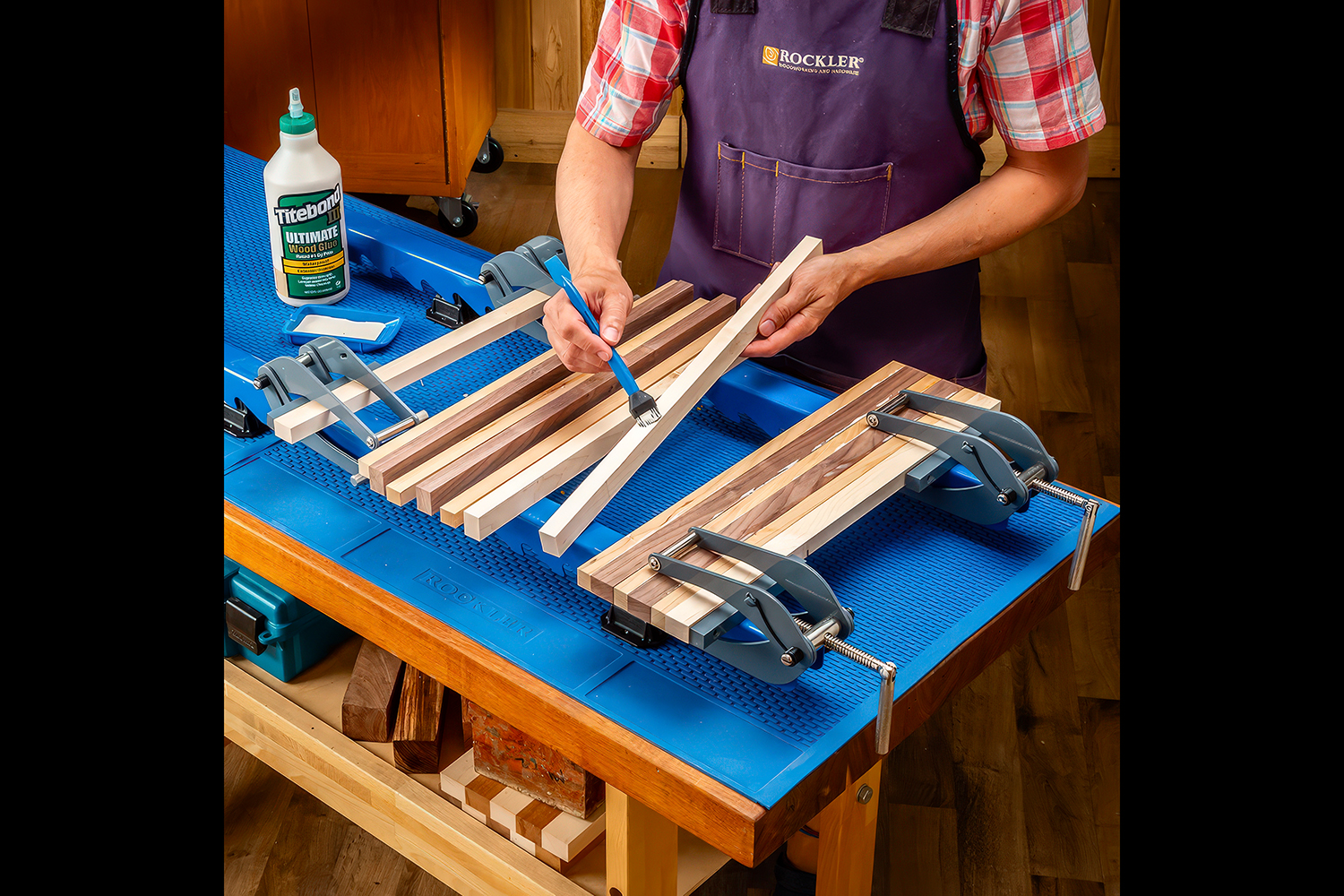

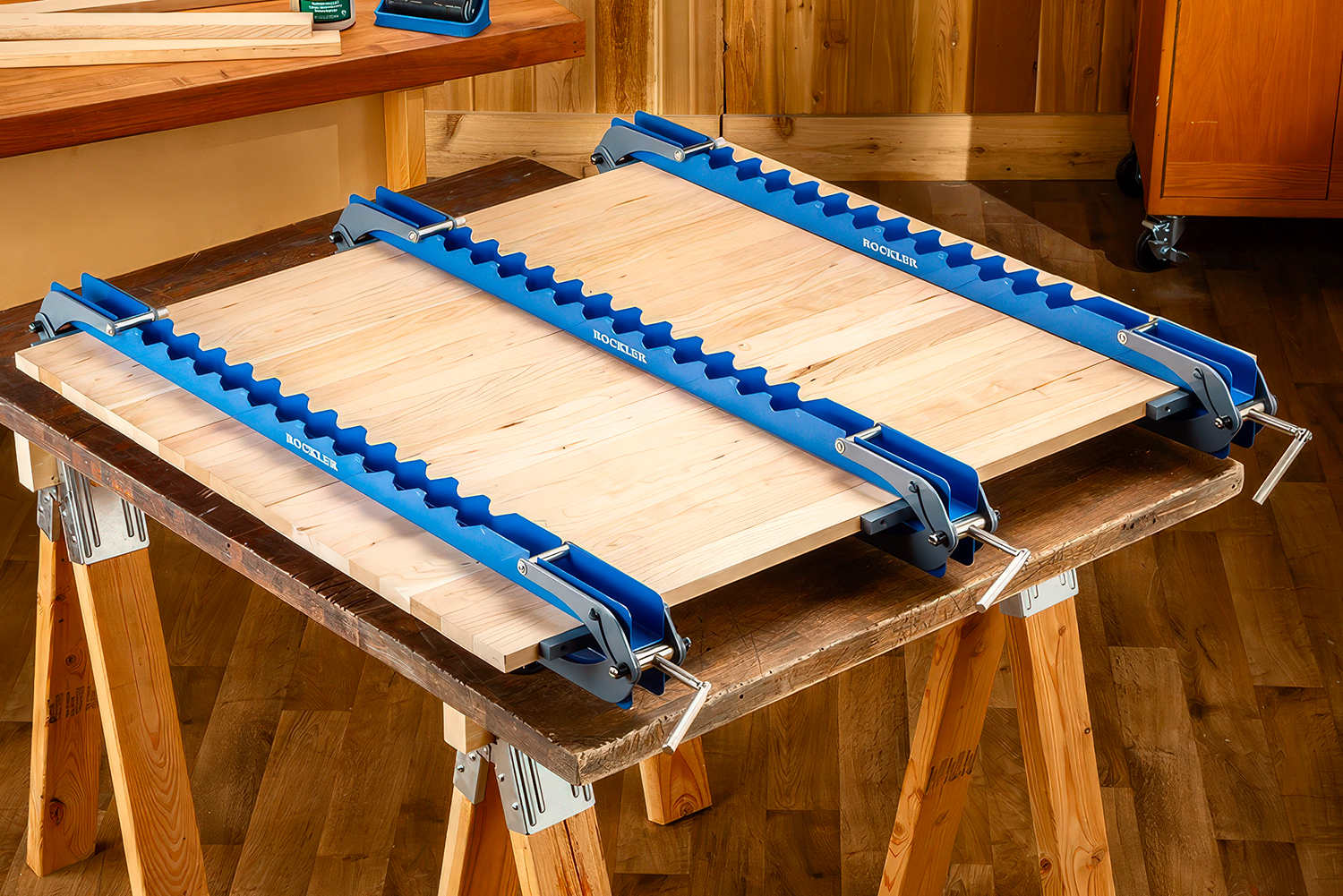

Flat panels and flush joints are easy to achieve with our Deluxe Panel Clamps to keep things in line. Each clamp sandwiches your panel between two rigid steel cauls, forcing the joints flush and ensuring flat results. This saves you loads of sanding time, and ensures a nice, level surface without dips and high spots. Thoughtfully engineered from thick steel with scissor-action couplers that apply pressure from all sides, they're perfect for gluing up tabletops, wide door panels and thick bench tops. With no bowing under pressure, there is no need to stagger your clamps top and bottom. The clamps are easily adjusted for stock up to 3'' thick and can clamp a panel up to 36'' wide. Buy as many as you need—two is a great starting point.

Specs

Brand Rockler
Item Number 67164
Weight 15.9 lbs
Product Dimensions 1.78” W x 1.92” H x 42” L. 1.8mm thick steel
Thickness Capacity 3/4" to 3” thick
Panel Width Capacity 10” to 36” wide

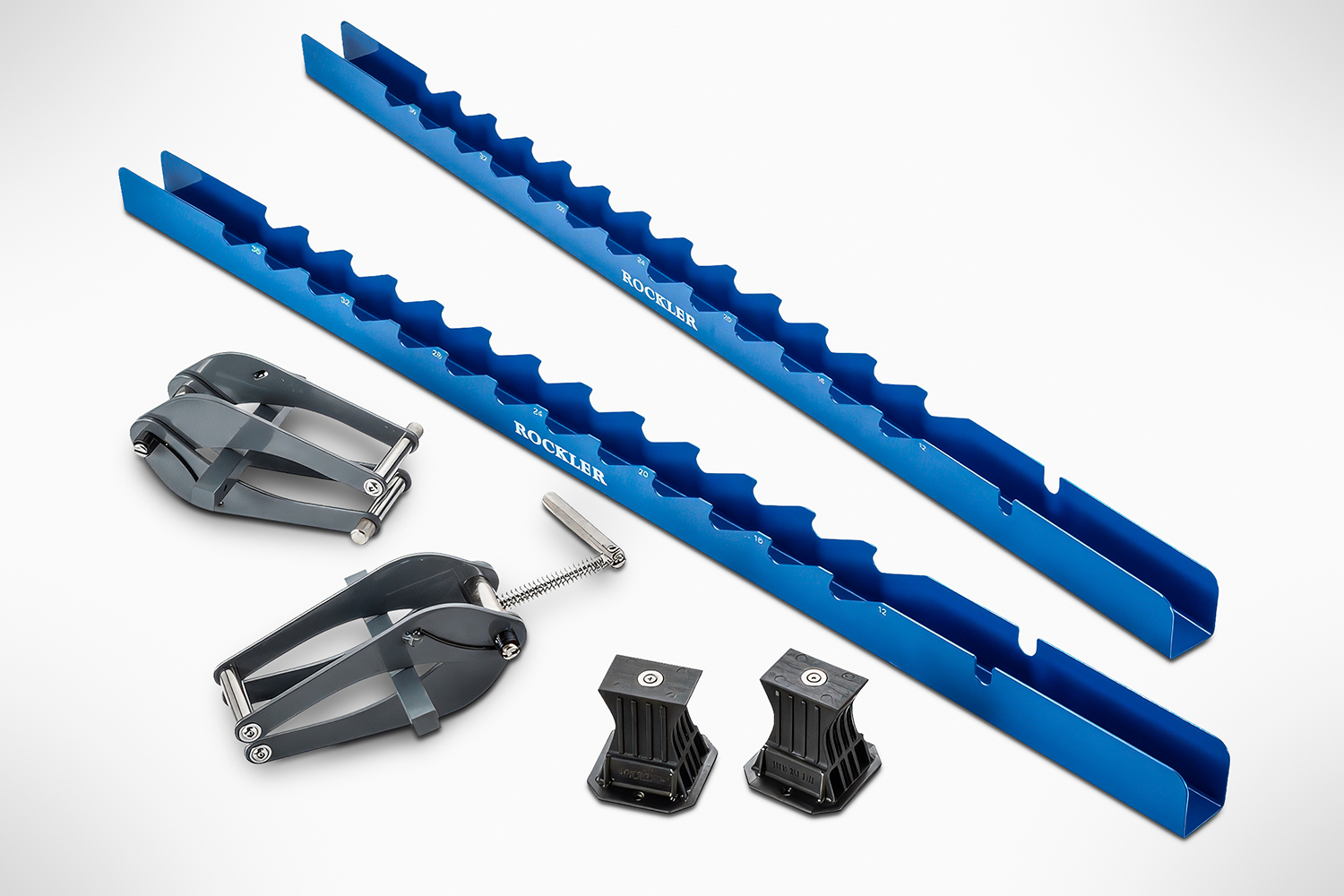

Includes (1) Set of clamp rails

(1) Clamp headstock with handle

(1) Clamp tailstock

(2) Clamp feet



Warning:  California Proposition 65

Shipping Information

  • Weight: 16.25 lbs
  • Dimensions: 45 × 4 × 5 in
