Laguna PX/12 Planer

SKU #240078
MFR #MPLANPX12-0130-R

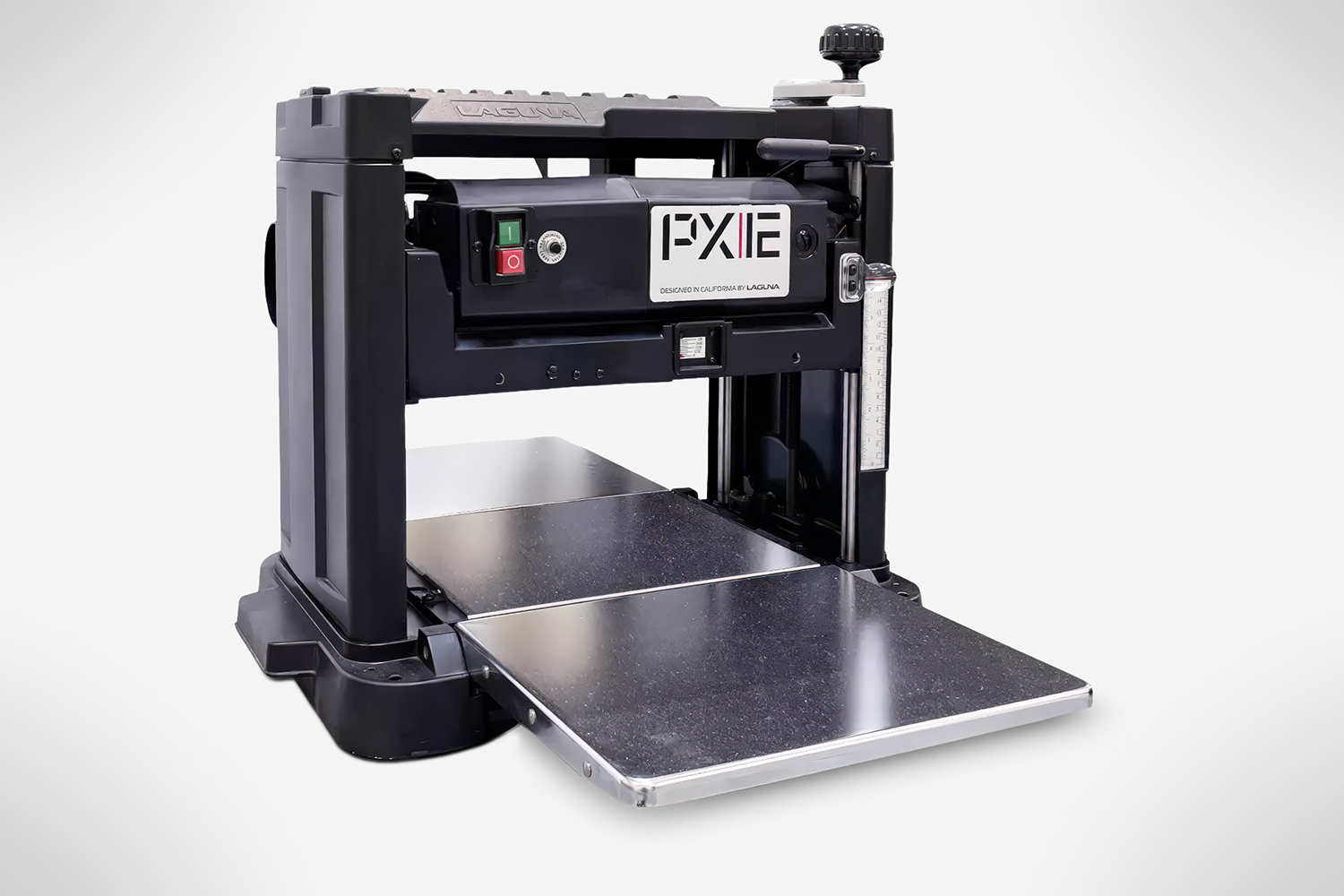

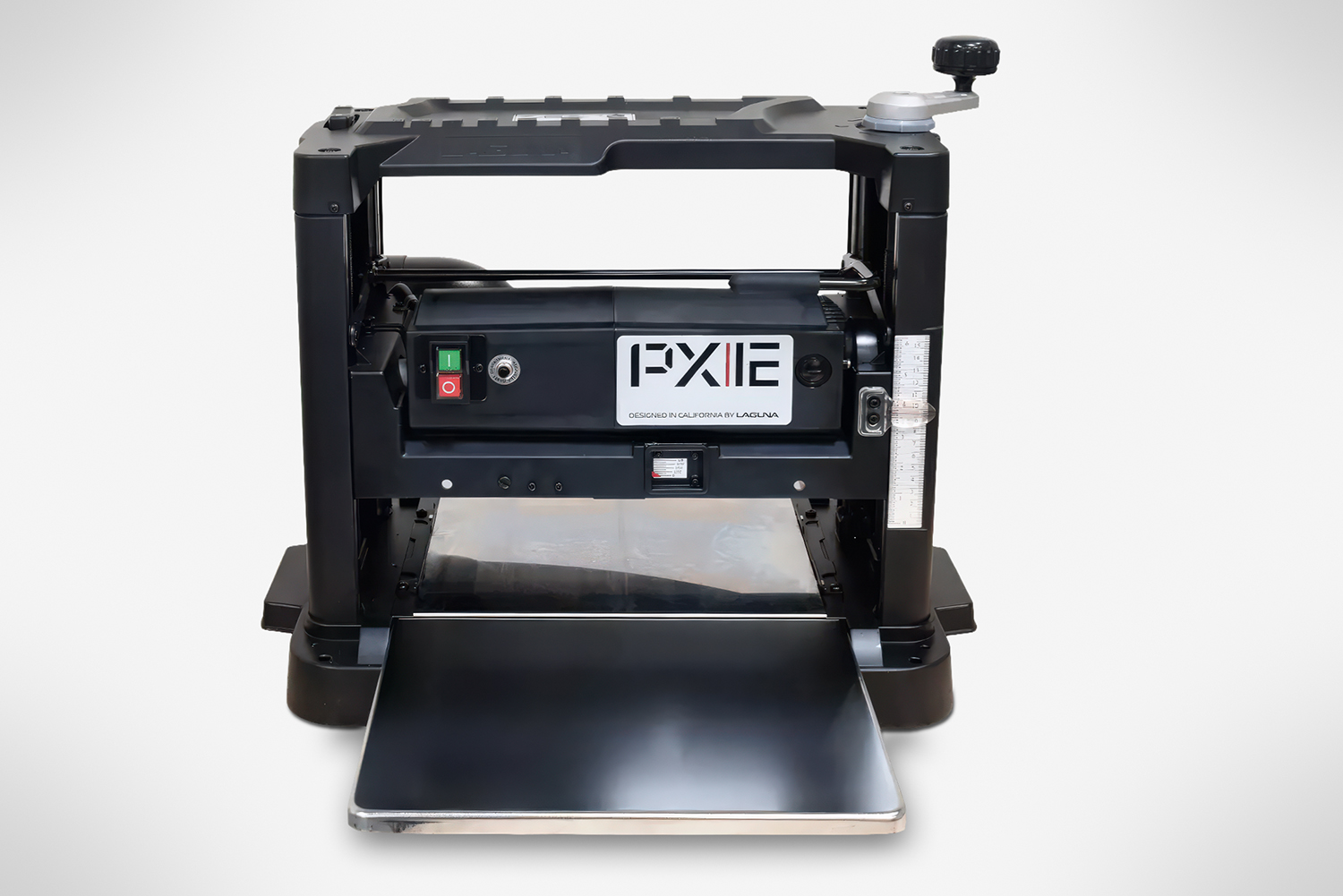

Brand new to the Laguna lineup is the all-new PX|12 benchtop planer featuring the new and improved QuadTec cutterhead. The Laguna PX|12 is loaded with premium features to make woodworking safer and more enjoyable....

See Full Description and Specs

$699.00

In stock

Product Highlights

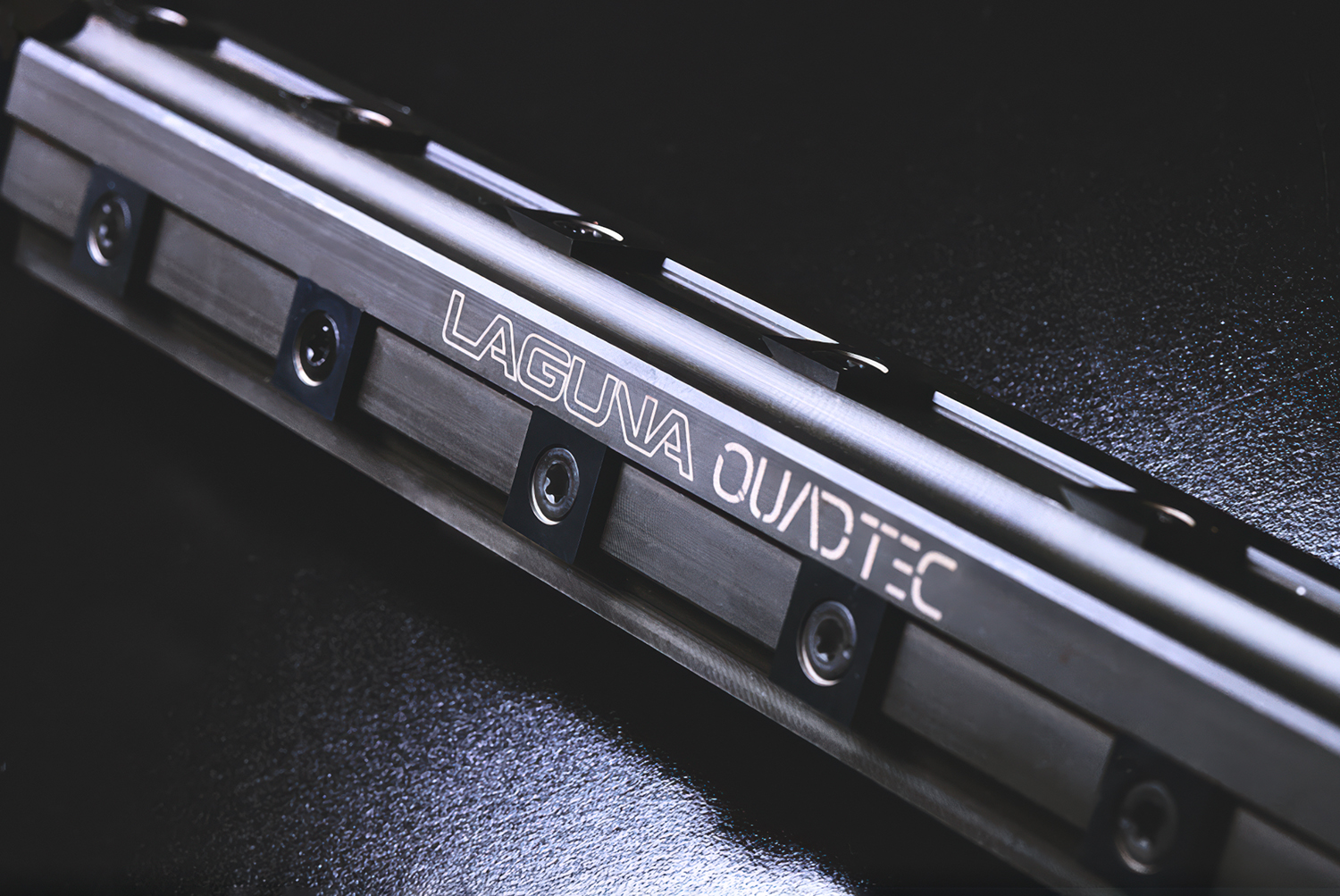

  • QuadTec. The new and improved  QuadTec delivers what woodworkers want most in a compact package by providing a quiet, long-lasting performance with its 26 carbide The carbide inserts last longer than traditional planer knives and are 4 sided to provide a fresh cutting edge when rotated. The QuadTec II is a game changer when planing tricky grain in hardwoods.
  • 2 HP Motor. The 2 HP motor provides plenty of power for this Best-in-Class benchtop planer. The motor spins the cutterhead at 10,000 RPM to provide the smoothest possible finish. Fan-assisted chip ejection vacuums chip off the cutter head and exhausts them out of the machine.

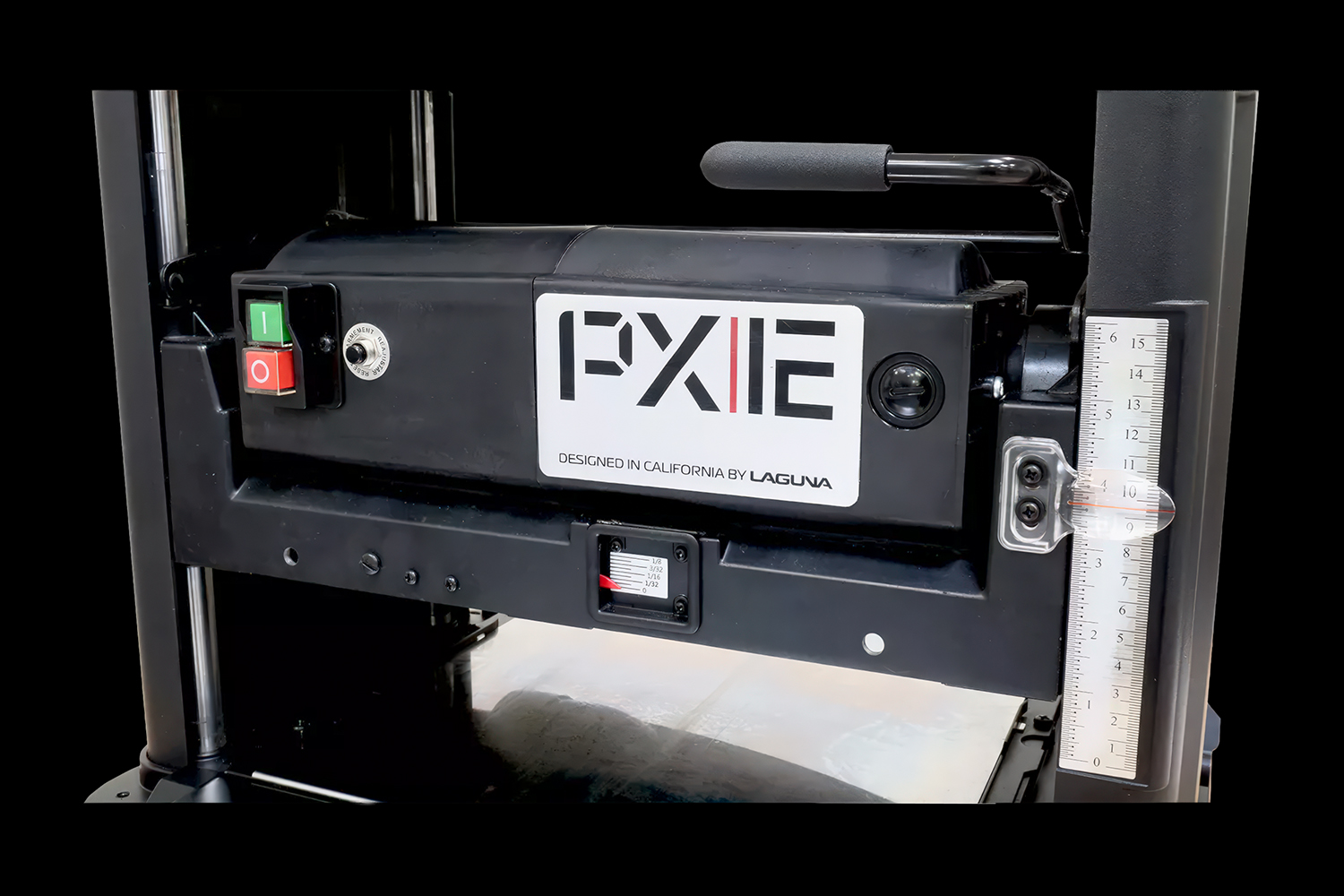

  • Flip-Down Extensions. Turret depth-stop allows users to return to most frequently used thicknesses with ease.
  • Min/MAX Stock. Maximum width is 12-1/2”. Minium stock length is 10”.

Description

Brand new to the Laguna lineup is the all-new PX|12 benchtop planer featuring the new and improved QuadTec cutterhead. The Laguna PX|12 is loaded with premium features to make woodworking safer and more enjoyable.

Specs

Motor 110v 2HP Universal 50/60hz/15 Amp.
Circuit Requirement 20 Amp
CSA Yes
Bed Size 12-1/2” x 10-1/4”
Pull-Out Extension (2) 11-1/4” Flip Down Extention
Maximum Depth of Cut 3/32”
Maximum Stock Thickness 6”
Minimum Stock Thickness 5/32”
Minimum Stock Length 10”
Maximum Stock Width 12-1/2”
Feed Rate 26 FPM
Dust Port Diameter 4” Step Down to 2-1/2”
Cutterhead RPM 10,000
Cutterhead Diameter 1-7/8”
Insert Knives 26 x 4-sided Carbide, 4-row
Dimensions Set Up Approx. 24” x 34”
Shipping Dimensions 25” x 17” x 21-1/2”
Shipping Weight 72 Lbs
