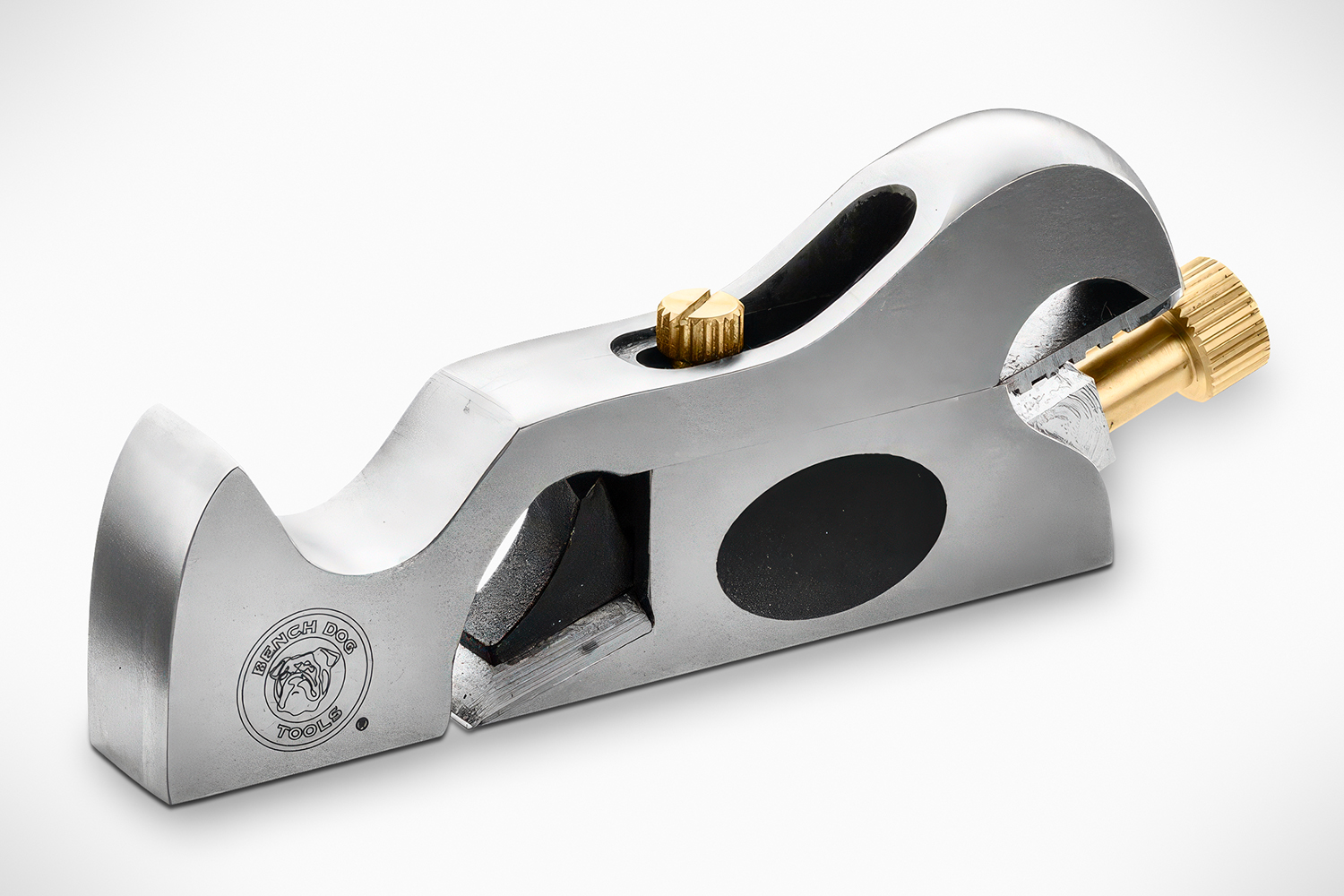

Bench Dog No. 92 Shoulder Plane

SKU #590940
MFR #51527

For fine-tuning tenons and cleaning up corners, rabbets and other joinery elements, the Bench Dog No. 92 Shoulder Plane is a shoe-in. The mouth of the plane is adjustable by sliding the upper section forward and back for fine or coarse shavings. In addition, the entire upper section can be removed for conversion to a chisel plane—great for nicking glue out...

See Full Description and Specs

$134.99

In stock

Product Highlights

  • Cast Iron Body. Ductile cast iron body for superior strength and resistance to impact.

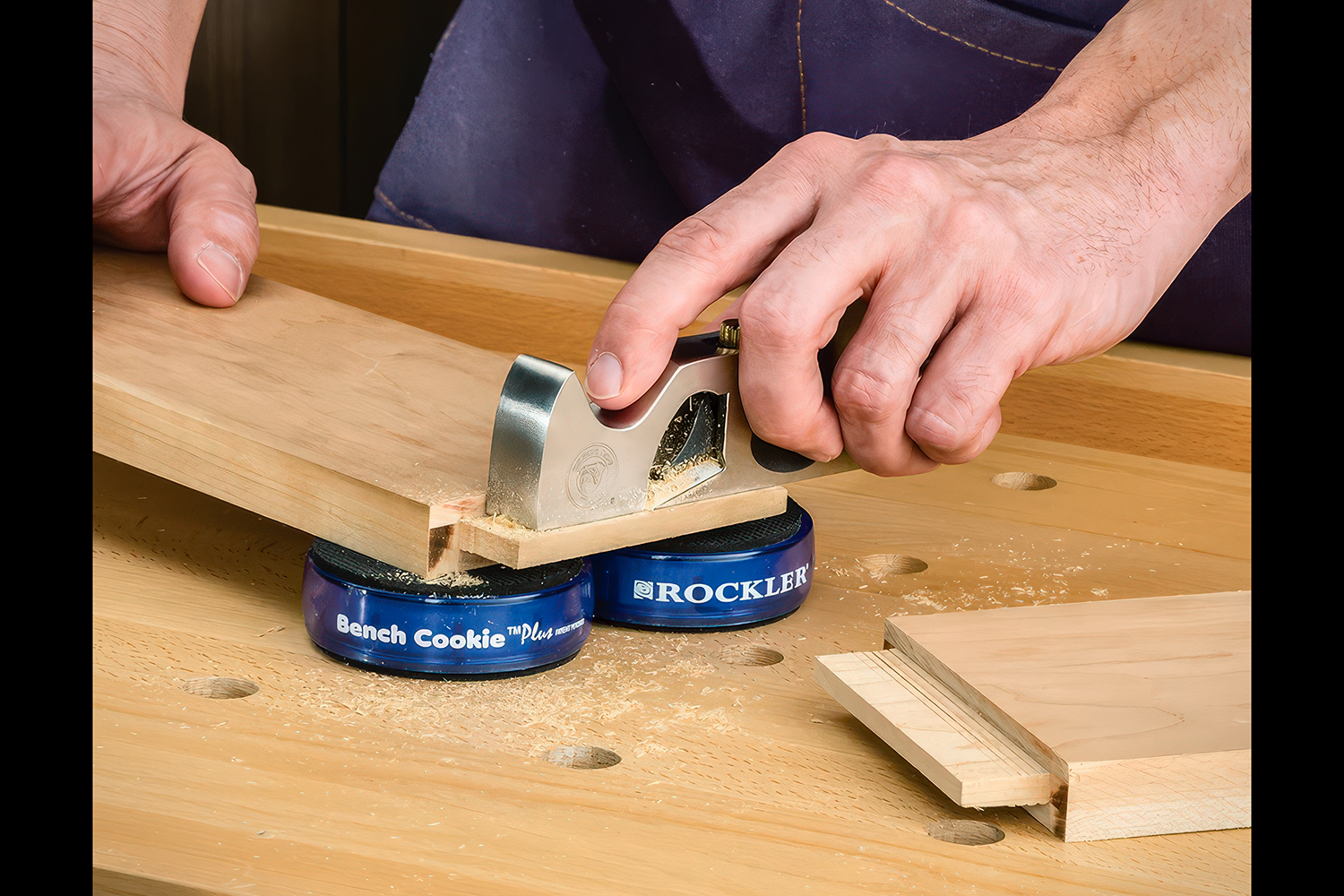

  • Uses. Ideal for trimming tenon shoulders and rabbets and performing other precision work.
  • Adjustable Mouth. Mouth is adjustable by sliding the upper section forward and back.
  • Removeable Upper/Front Section. Upper/front section can be removed for conversion to a chisel plane and easy access to corners.
  • Setscrew. Setscrew in front section retains the mouth setting when reattaching the nose piece.
  • Depth of Cut. Depth of cut is micro adjustable with the precision brass knob.
  • Finger Recesses. Finger recesses along the sides ensure a comfortable grip.

Description

For fine-tuning tenons and cleaning up corners, rabbets and other joinery elements, the Bench Dog No. 92 Shoulder Plane is a shoe-in. The mouth of the plane is adjustable by sliding the upper section forward and back for fine or coarse shavings. In addition, the entire upper section can be removed for conversion to a chisel plane—great for nicking glue out of stile and rail corners. The 3/4'' blade is a hair wider than the full width of the plane body, ensuring clean, sharp corners without leaving a ridge. Like our other Bench Dog planes, both the sole of the plane and the back of the blade are precision ground and polished flat. The sides are machined square with the sole. Each plane includes a storage case and Certificate of Inspection with measurements specific to your plane for sole flatness and blade hardness.

Specs

Brand Rockler Bench Dog
Weight 1.7 lbs
Tech Spec Plane Model: No. 92 Shoulder Plane
Plane Weight: 1.1 lbs
Sole Flatness: 0.002” to 0.004” tolerance
Sole Length: 5-1/4”
Sole Width: 3/4”
Blade Width: 3/4”
Blade Thickness: Approx. 1/8”
Blade Bevel Angle: 25°
Blade Bevel Up/Down: Up
Blade Hardness: 55-60 HRC
Frog/Blade Seat Angle: 19°
Handle Material: Cast Iron
Body Material: Cast Iron
  Blade Material: Hardened Carbon Steel
  Knob Material: Brass

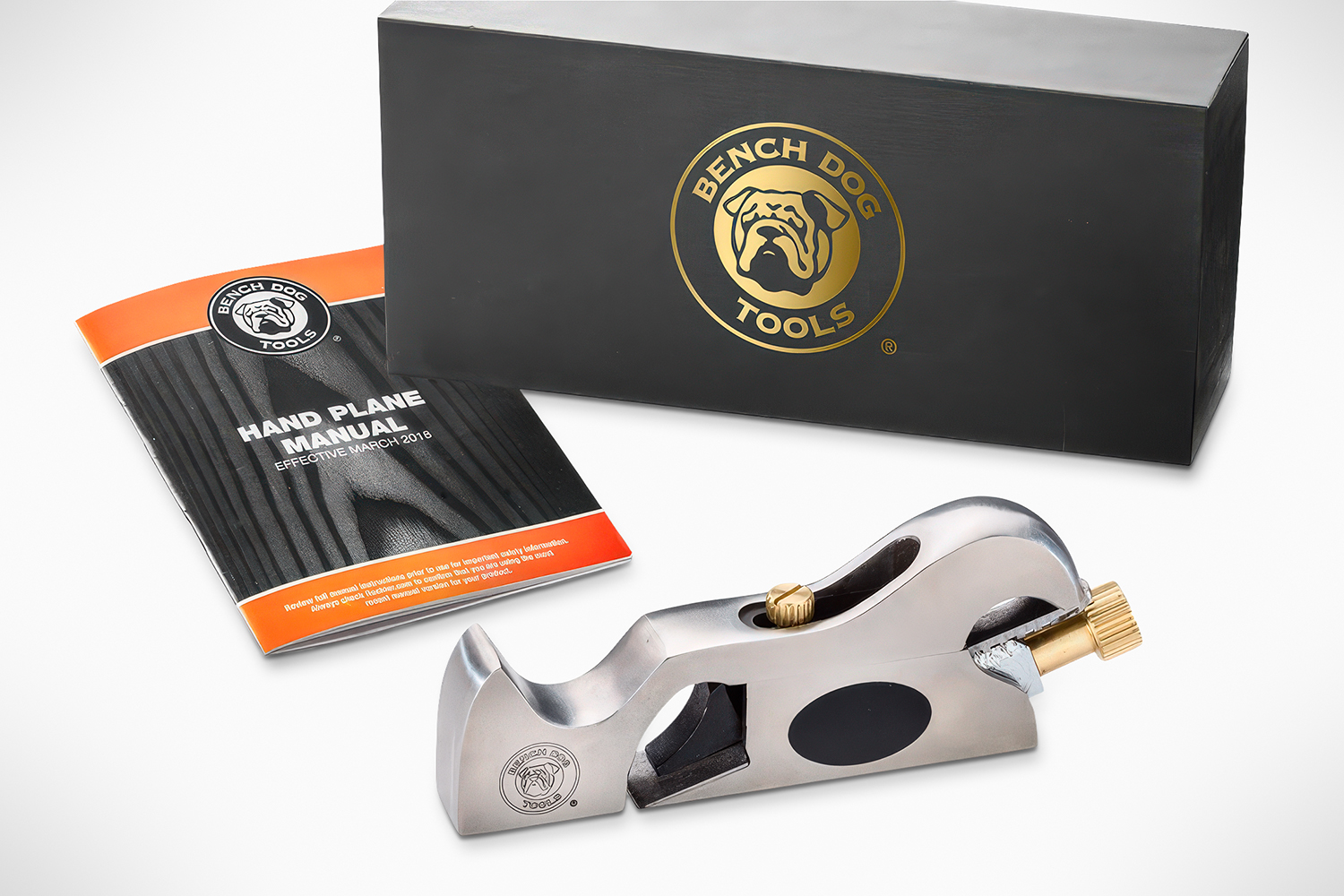

Included (1) Bench Dog® Tools No. 92 Shoulder Plane

(1) Black storage case

(1) Certificate of Inspection

(1) Owner’s manual



Warning:  California Proposition 65

Shipping Information

  • Weight: 2.2 lbs
  • Dimensions: 9 × 7 × 4 in
