Description

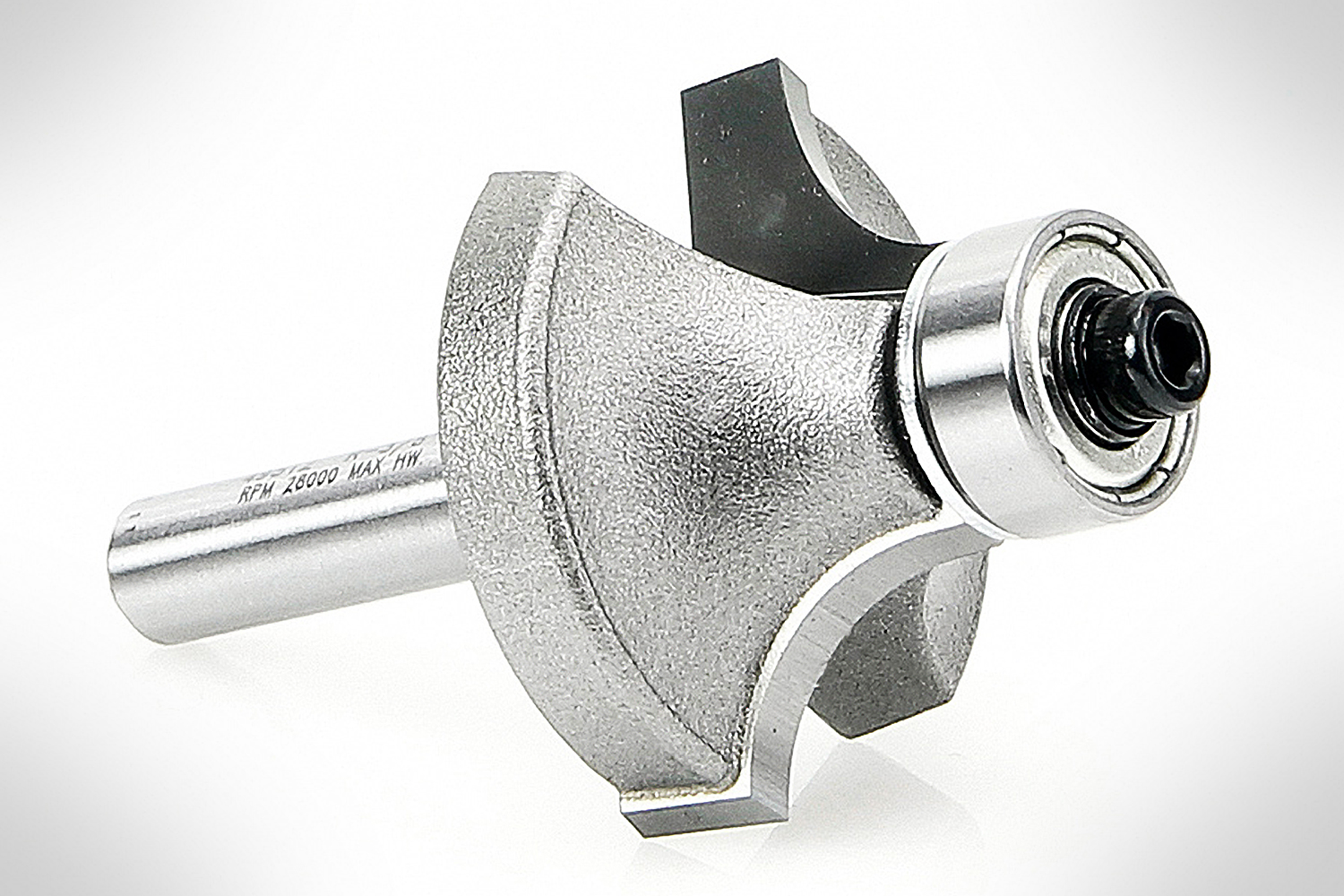

The Amana Carbide-Tipped 3/8” Radius Corner Round bit is the basic edge-forming bit. The bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. This is a 1/4" shank bit.
Specs
| Diameter (D) | 1-1/4” |
| Radius (R) | 3/8” |
| Cutting Height (B) | 5/8” |
| Shank (d) | 1/4" |
| Overall Length (L) | 2-3/16” |
| Replacement Bearing | 47706 |
| Flutes | 2 |
| D1 | 1/2" |
